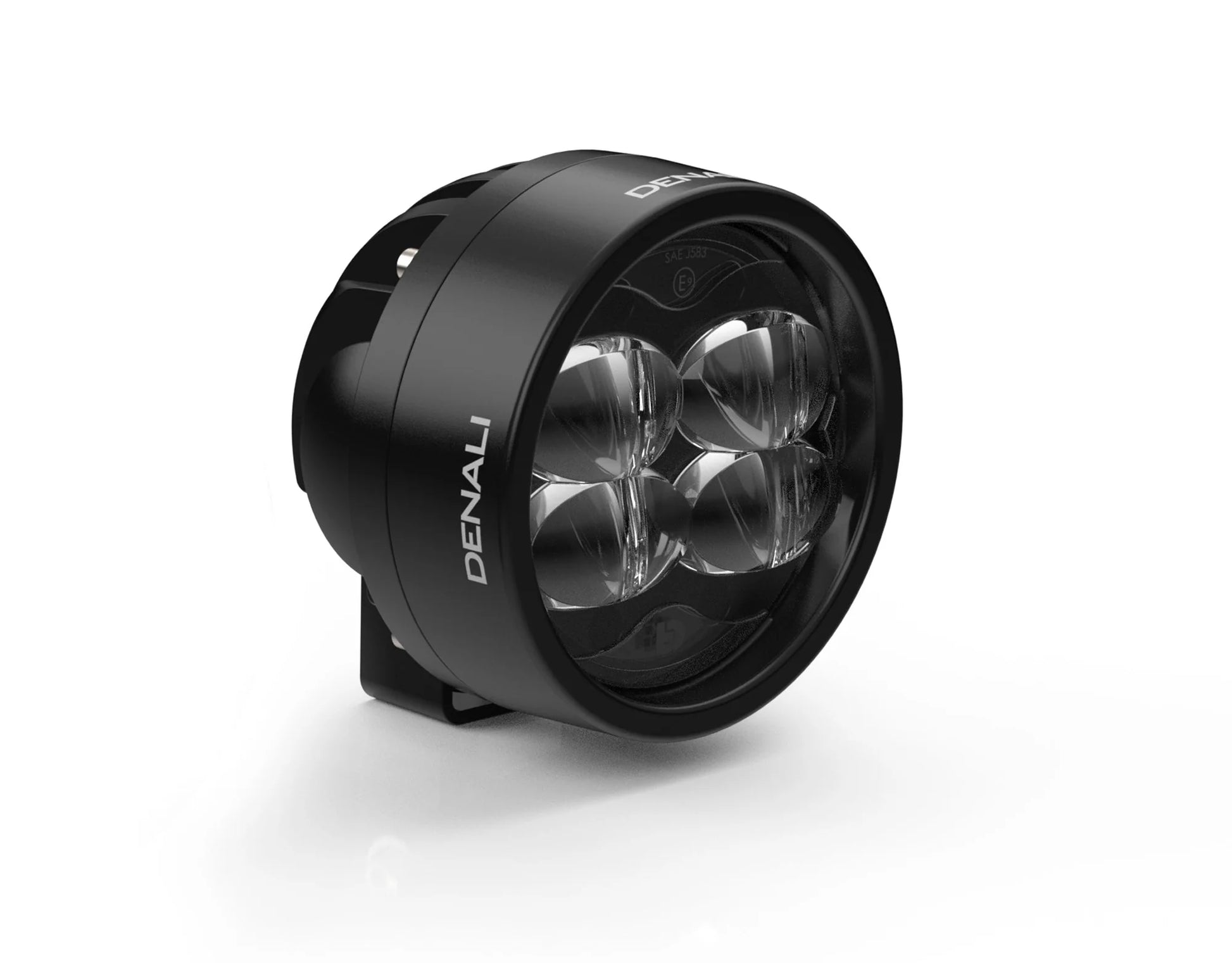

DENALI 2.0 D3 high performance fog lights DataDim

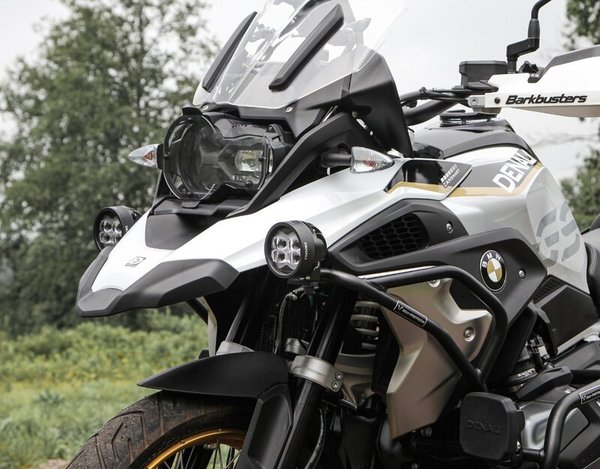

Built on a decade of DENALI innovation, our new D3 LED lights deliver the most powerful road-legal fog lights on the market. Our proprietary fog optics have been carefully designed to achieve the maximum allowable candela (beam distance) for each of the regulated lighting zones to meet both North American SAE/DOT and European Union ECE regulations! The result is a truly unique lens that works as well as it looks, capable of producing a super sharp fog beam 450 feet long and 300 feet wide at 1 lux (per pair)! No other street-legal fog light comes even close to this performance!

Our D3 is also available with our signature TriOptic™ beam system, offering a spot and hybrid beam option (in the same kit) for drivers who want uncompromised light output when you need it most. D3 TriOptic LED spot/hybrid

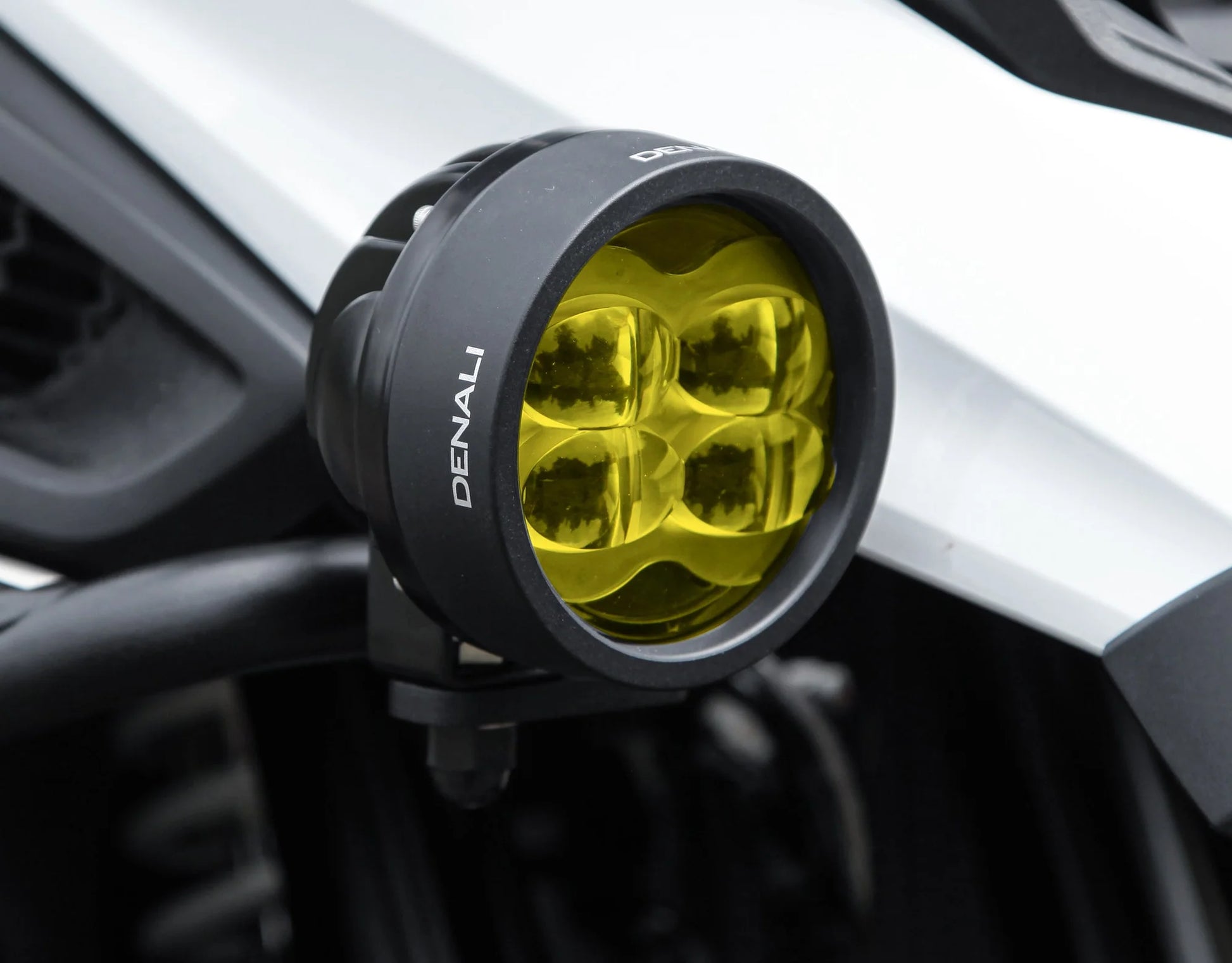

Choose to add an additional set of amber or selective yellow lenses for better performance in adverse weather conditions or to make your vehicle significantly more visible to other motorists on the road!

Features

• Best-in-class street legal fog light (SAE/DOT and ECE certified)
• High-intensity series Cree LEDs with an output of 2800 lumens per pod
• DataDim™ 3-wire smart dimming technology (compatible with all DENALI dimming controllers)
• The DrySeal™ submersible waterproof light can withstand the most extreme environments
• Impact PC™ polycarbonate bezels will not crack, fade, or corrode like traditional aluminum bezels.

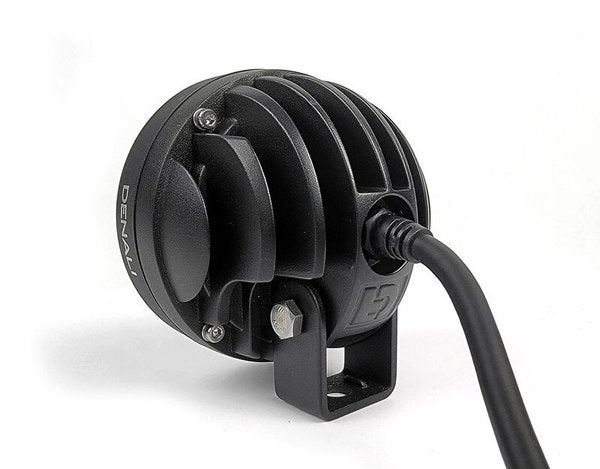

• LiveActive™ thermal management keeps the LEDs cool, preventing loss of light output due to overheating
• Flat mounting bracket with stainless steel hardware included
• Amber and selective yellow lenses available

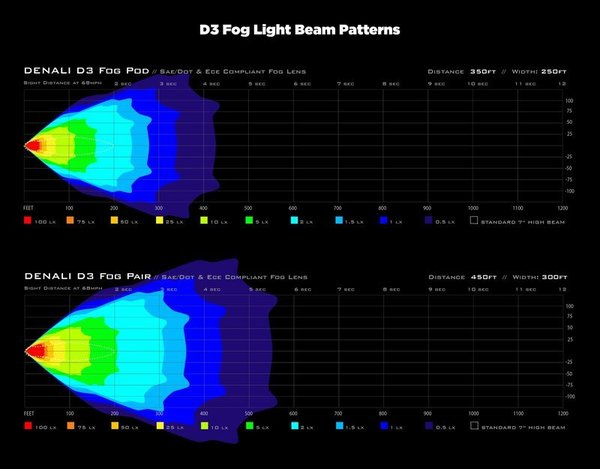

Beam power (pair)

• Beam distance (at 1 lux): 450 feet (137 meters)
• Beam width (at 1 lux): 300 feet (91 meters)



Specifications (single pod)

• Pod size: 3.5" (90mm) round x 3.0" (76mm) deep
• LED: (4x) 11 Watt Cree XP-P LEDs
• Power consumption: 40 watts (3.3 amps)
• Lumens: 2800
• DataDim™ compatible: Yes
• Operating voltage: 9-32V DC
• IP67 waterproof and submersible
• Fog glass certifications: SAE/DOT J583 and ECE R19



New wiring and switching options

For 2022, we've expanded our standard lighting kit to offer a customizable package that allows you to choose the best wiring harness and lighting control option your Vehicle on your Budget! Select one of the options above or click the links below to learn more about our individual wiring and switching options. Please be sure to add one of these options to your light pods to complete your DENALI lighting kit!

• Standard Powersports Wiring Harness - Heavy duty, cost effective, low profile waterproof switch - the best option for easy single intensity installation
• Premium Powersports wiring harness - Overmolded cable and a high quality illuminated switch with handlebar mounting kit
• DataDim Module - Add this clever dimmer module to any of the wiring harnesses above to allow your lights to change intensity in sync with your factory high beam switch!
• DialDim lighting control - The leader in LED lighting control allows you to independently turn on/off and dim two groups of lights via a single halo dimmer switch and unlocks tons of bonus features such as high/low sync, strobe with horn, flash with signal and cancel with Signal, electronic fuse setting and even serves as a battery voltage monitor!


And last but not least, we also produce a complete accessory manager (the CANsmart Controller with the appropriate one CANsmart software It has dozens of customizable settings to control LED lights, but can also be used to power and control any electrical accessory, from lights and horns to heated grips, dash cams and GPS devices.

Product packages – what is included?

On this product page you can customize your lighting set. Please note that the light capsules, color lens sets and wiring harnesses are packaged separately.

Light Pod Box Contents – DNL.D3.051

• (1x) D3 LED fog light housing
• (1x) Hinge brackets with M8 stainless steel fittings

• (1x) Cable pigtail

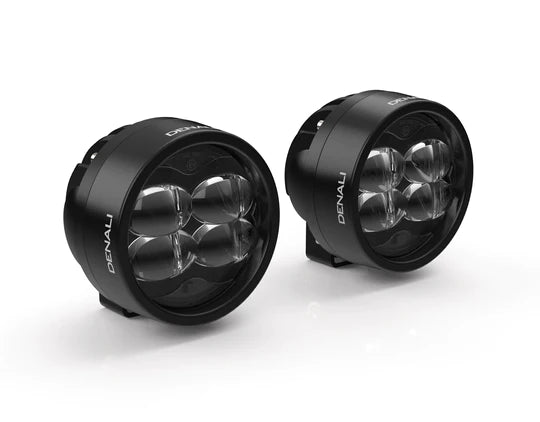

Light Pod Box Contents – DNL.D3.051W Double Kit

• (2x) D3 LED fog light housings
• (2x) Hinge brackets with M8 stainless steel fittings

• (2x) Cable pigtail

Optional Lens Kit Box Contents:

DNL.D3.10400 (amber) - DNL.D3.10500 (yellow)

• (2x) fog lenses (amber or yellow)
