DENALI DR1 LED light pod with DataDim™ technology (rev02)

The unique oversized reflector in the DR1 produces an industry-leading 1000 feet beam distance with the single pair of 10-watt LEDs. No other 10-watt LED comes even close to this performance. The DR1 is ideal for night driving where maximum beam distance is required. The included pair of True-Hybrid™ lenses carry official E-Mark certification and provide a more balanced combination of distance and distance.

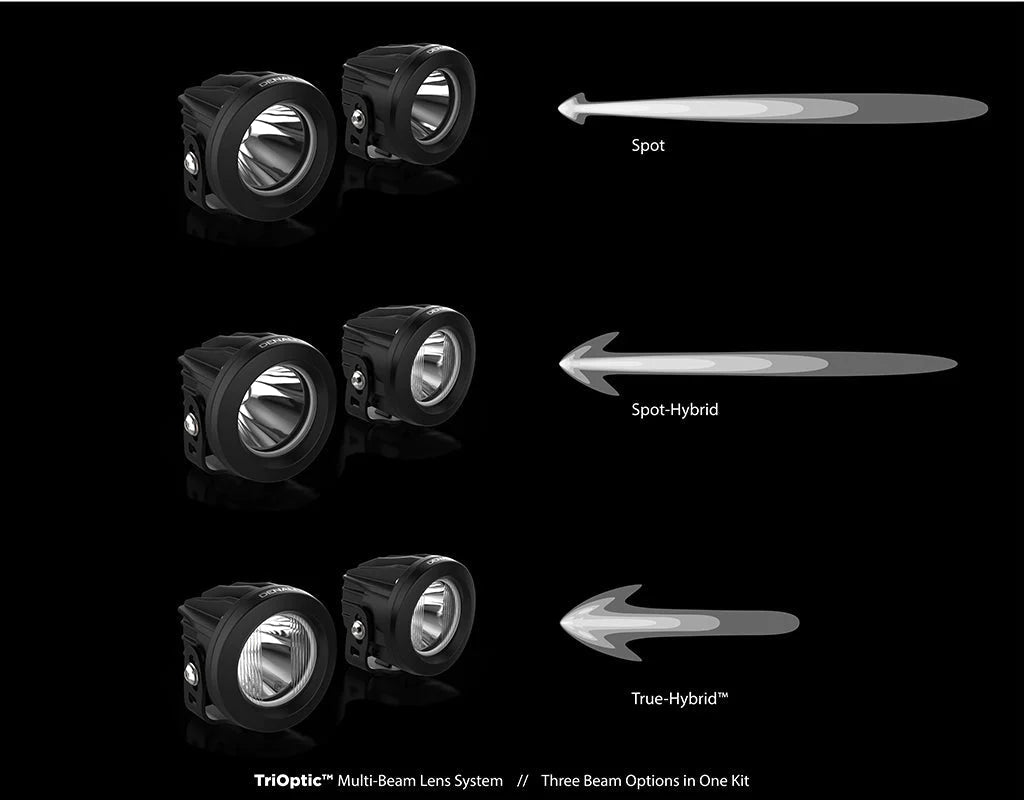

Our TriOptic™ lens system means each light column has a factory-installed clear spot lens, but also includes an optional flood lens to allow three different beam options when used as a pair (Spot, Flood or Hybrid).

Choose to add an additional set of amber or selective yellow lenses for better performance in adverse weather conditions or to make your vehicle significantly more visible to other motorists on the road!

More flexibility, maximum control

For 2022, we've expanded our standard lighting kit to offer a customizable package that allows you to choose the best wiring harness and lighting control option your Vehicle on your Budget! Select one of the options above or click the links below to learn more about our individual wiring and switching options. Please be sure to add one of these options to your light pods to complete your DENALI lighting kit!

• • Standard Powersports Wiring Harness - Heavy duty, cost effective, low profile waterproof switch - the best option for easy single intensity installation
  • Premium powersports wiring harness - Overmolded cable and a high quality illuminated switch with handlebar mounting kit
  • DataDim Module - Add this clever dimmer module to any of the wiring harnesses above to allow your lights to change intensity in sync with your factory high beam switch!
  • DialDim lighting control - The leader in LED lighting control allows you to independently turn on/off and dim two groups of lights via a single halo dimmer switch and unlocks tons of bonus features such as high/low sync, strobe with horn, flash with signal and cancel with Signal, electronic fuse setting and even serves as a battery voltage monitor!


  And last but not least, we also produce a complete accessory manager ( the CANsmart Controller with the appropriate Software ) It has dozens of customizable settings to control LED lights, but can also be used to power and control any electrical accessory, from lights and horns to heated grips, dash cams and GPS devices.

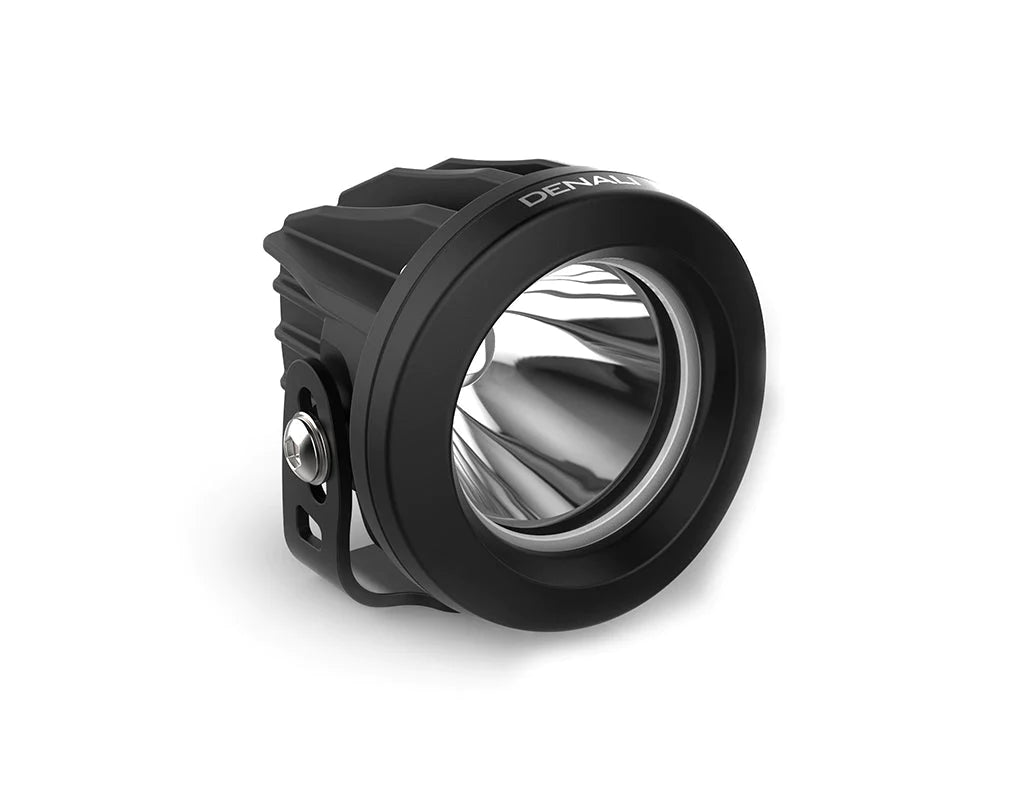

DR1 Light Pod Features

• High-intensity series Cree LEDs with an output of 2190 lumens per pair

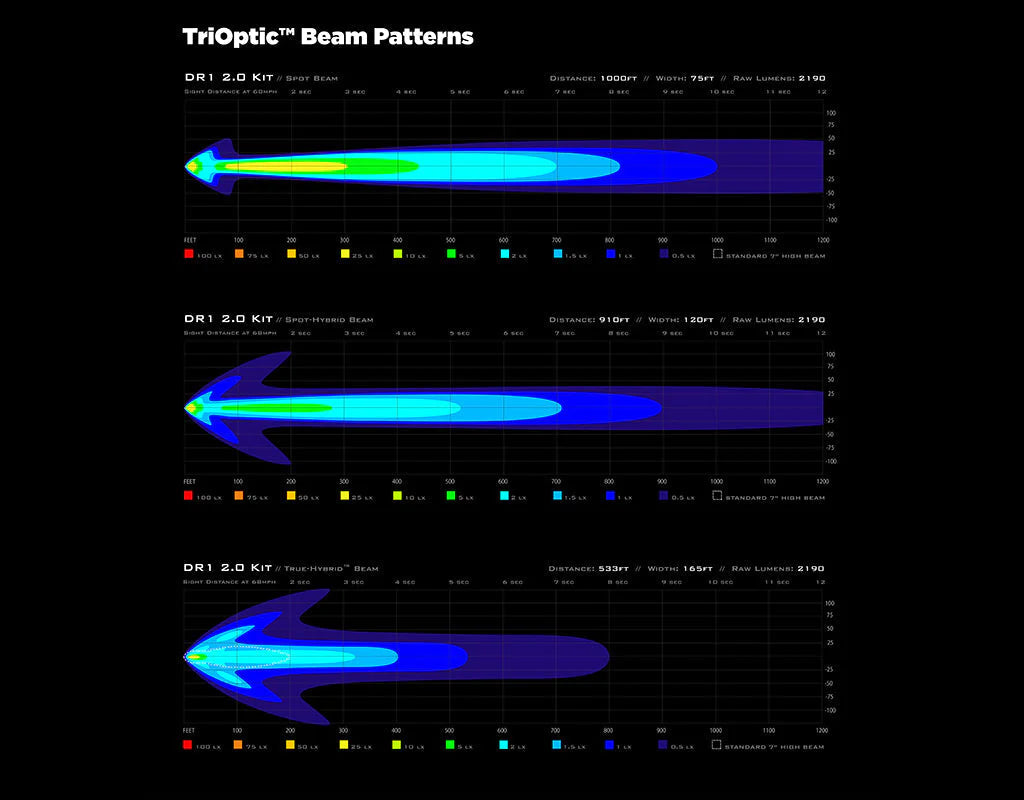

• The TriOptic™ Multi-Beam Lens System includes a spot, flood and hybrid beam option in a pair of pods
• DataDim™ equipped light pods enable plug-and-play connection and integrated dimming with DENALI dimming and lighting controls.
• DrySeal™ Submersible Waterproof light housings withstand the most extreme environments

• Impact PC™ polycarbonate bezels will not crack, fade, or corrode like traditional aluminum bezels
• LiveActive™ thermal management keeps the LEDs cool, preventing loss of light output due to overheating
• Flat mounting bracket with stainless steel hardware included
• An additional pair of spot lenses with E-Mark approval is included
• Interchangeable lenses available in clear, amber and selective yellow


DR1 Pod Specifications (Pair)

• LEDs: (2x)10 Watt Cree XPL HI
• Current consumption: 1.6 amps
• Beam Distance (Point): 1000 feet
• Beam Width (Spot): 75 feet
• Raw lumens: 2190
• DataDim™ compatible: Yes

• Operating voltage: 12VDC

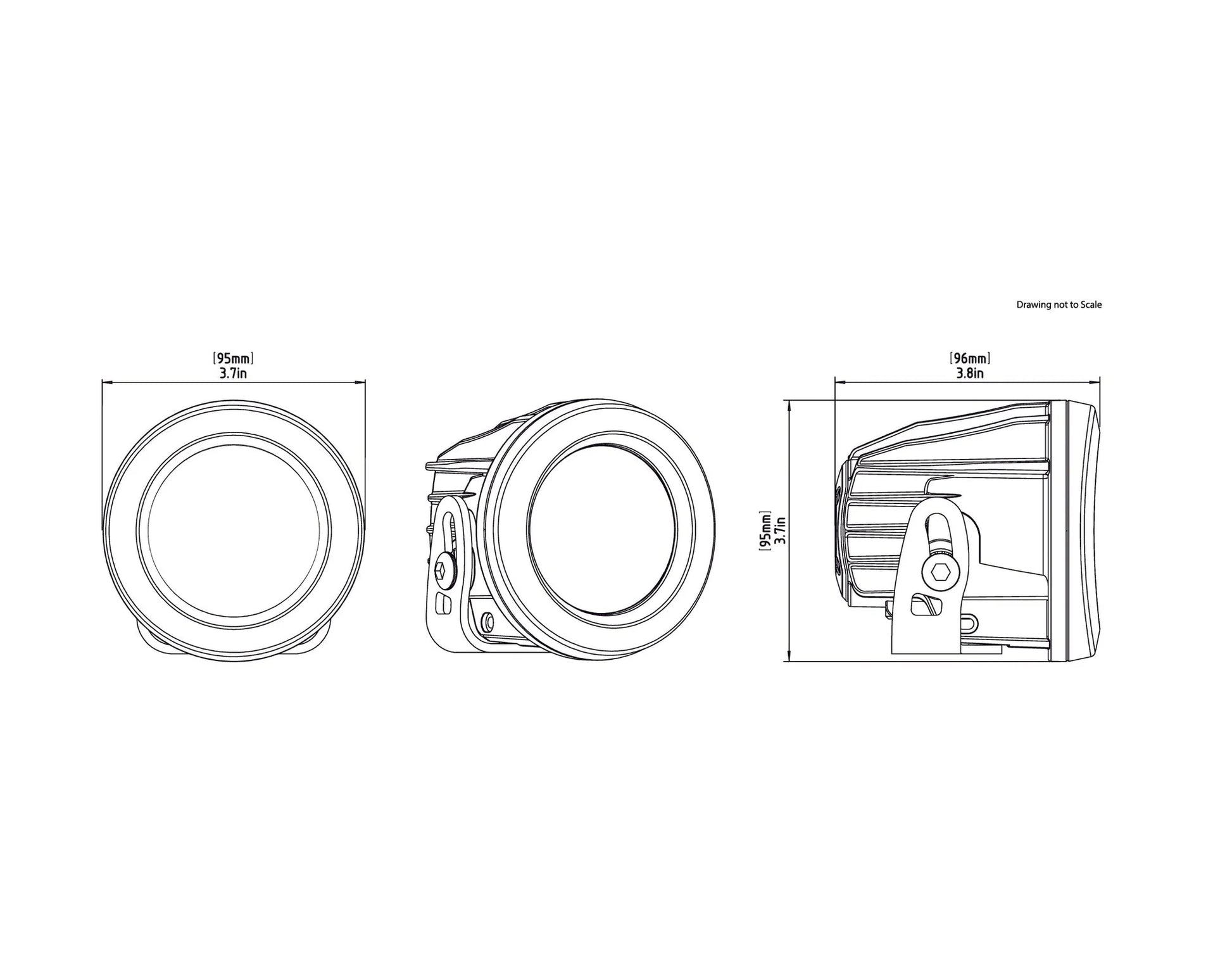

• Pod Size: 3.7 inches round x 3.8 inches deep (each)
• Pod Weight: 1.45 pounds (each)
• IP67 waterproof and submersible
• E-Mark approved hybrid lenses

DR1 Product Packages – What’s Included?

On this product page you can customize your DR1 lighting set. Please note that the light capsules, color lens sets and wiring harnesses are packaged separately.

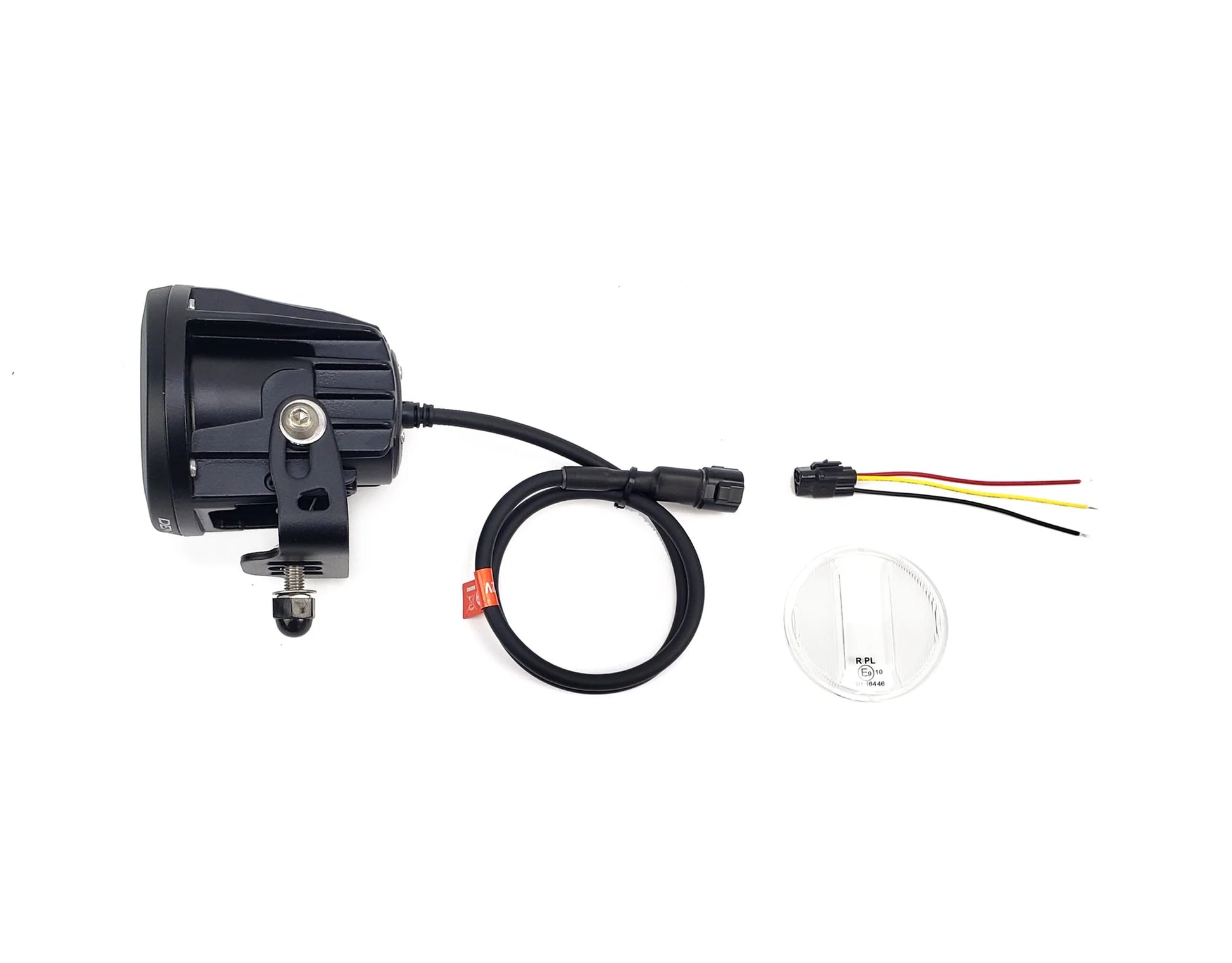

DR1 Light Pod Box Contents – DNL.DR1.050

• (1x) LED light pod

• (1x) Hybrid lens (included in kit)
• (1x) Spot lens (installed)
• (1x) M8 mounting hinge with stainless steel mounting material
• (1x) Cable pigtail

DR1 lens kit includes: DNL.DR1.10100 (amber) - DNL.DR1.10200 (yellow)

• (2x) spot lenses (amber or yellow)

• (1x) Flood lenses (amber or yellow)
